When your air conditioning system stops working on a hot day, one of the first components a technician might check is the AC contactor. This small but crucial part plays a fundamental role in controlling the flow of electricity to various parts of your HVAC system, such as the air conditioner's compressor and motors. Understanding where is AC contactor located and how it functions can be crucial for troubleshooting and ensuring your cooling system operates efficiently.
The Role of an AC Contactor in Your System
An AC contactor is essentially a type of relay; it is electrically controlled and used to switch an electrical power circuit. A typical AC contactor in your HVAC system serves as a high-voltage relay that can handle the high current needed to power your air conditioning unit. It works in tandem with the thermostat, responding to signals that turn your AC on or off. When your thermostat detects that the air inside your home needs to be cooled, it sends a low-voltage signal to the AC contactor.
The contactor then closes its contacts, allowing electricity to flow to the major components of your air conditioner. This crucial step ensures that your air conditioning unit operates efficiently and effectively, providing cool air when you need it most. Over time, maintaining this component can prevent potential system failures and extend the life of your air conditioner.
Common Locations for AC Contactors
The AC contactor is usually located inside or near the outdoor unit of your split-system air conditioner or heat pump. It is housed within a weather-resistant exterior box known as the condensing unit. To find it, you will typically need to remove the access panel, which might be secured with screws.

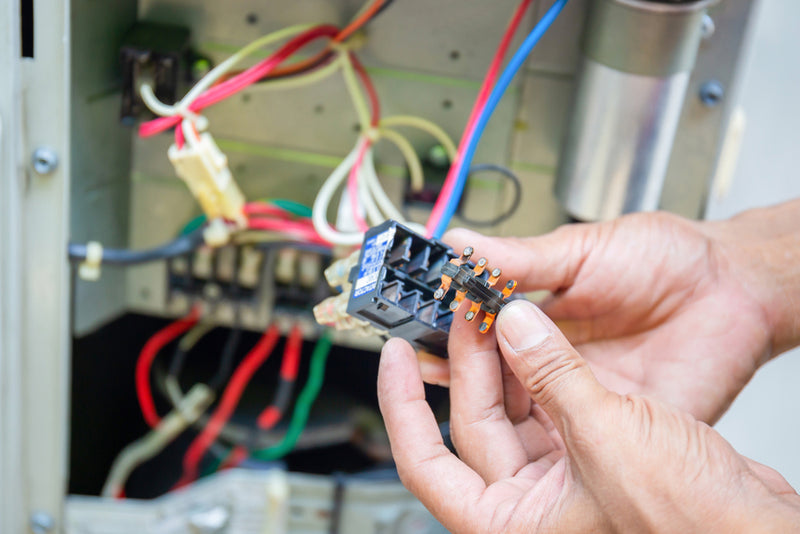

Inside, you will find the contactor, which is generally a small, box-like item with several wires leading into it from both the thermostat and the internal components of the air conditioner. Safety is paramount when locating and examining this part, so always ensure the power is turned off at the breaker before doing any inspection or maintenance.
Signs of a Faulty AC Contactor
Recognizing the signs of a faulty AC contactor can save you from more significant air conditioner issues down the road. Common indicators include a chattering or humming noise coming from the condensing unit when the air conditioner is turned on, which suggests that the contactor may be struggling to maintain a good connection. Another sign is if the exterior unit fails to start even though the indoor blower is running. This could mean that the contactor is not effectively engaging to start the system. In cases of severe wear or damage, the air conditioner might not turn on at all. Regular inspections and timely replacements of this component can prevent operational interruptions.
