Fuses play a significant role in protecting electrical circuits by breaking the connection when excessive current flows through them. To make sure a fuse works efficiently, it must be the right size. A fuse size chart is an essential tool for choosing the correct fuse to match your electrical needs.
Understanding Fuse Basics
A fuse is a critical safety device designed to protect electrical circuits from overcurrent. When the current flowing through a circuit exceeds a safe level, the fuse melts—commonly referred to as "blowing"—which interrupts the circuit and prevents potential damage to electrical components. This simple yet effective mechanism ensures that electrical systems operate safely by reducing the risk of overheating, short circuits, or electrical fires.
Fuses come in various types, each suited for specific applications and current levels. Cartridge fuses are cylindrical in shape, featuring metal caps at each end and are commonly used in industrial and household applications. Blade fuses, which have flat blades that plug into sockets, are widely used in automotive electrical systems. Plug fuses, found in older homes, screw into a socket and provide circuit protection for household appliances and lighting.
Fuses are categorized by two primary ratings: amperage and voltage. The amperage rating specifies the maximum current the fuse can safely carry before it blows, while the voltage rating indicates the highest voltage level the fuse can handle without failing. Choosing the correct fuse for an application requires careful consideration of these ratings to ensure optimal performance and protection.
Essential Fuse Size Chart Information
Fuses are available in various sizes and ratings, each designed for a specific purpose. Selecting the appropriate fuse type ensures efficient circuit protection and prevents electrical damage.
Cartridge Fuses

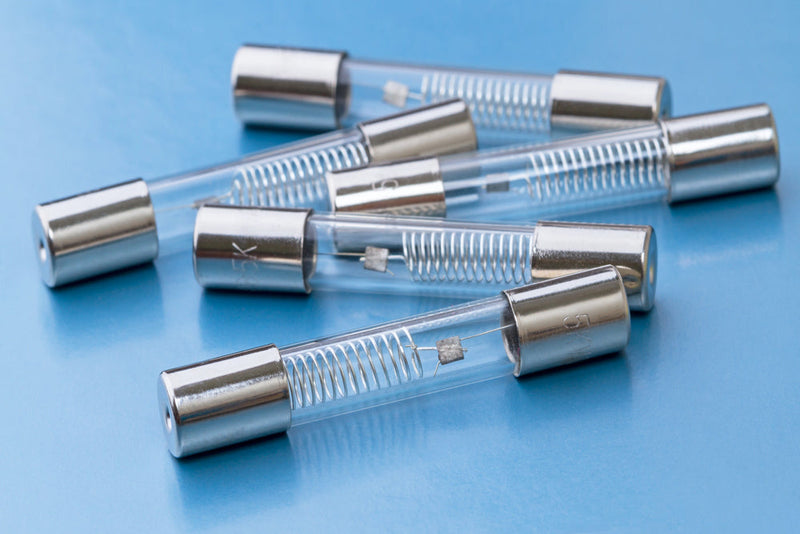

Cartridge fuses are frequently used in industrial equipment, power distribution systems, and household appliances. Their sizes and ampere ratings vary to accommodate different power requirements. The smallest, measuring 5 x 20 mm, is commonly found in small electronic devices and household appliances. A slightly larger variant, 6 x 32 mm, is used in industrial equipment and power tools. Larger sizes, such as 8.5 x 31.5 mm and 10 x 38 mm, are found in industrial settings and power distribution panels, with the latter specifically designed for high-current applications and motor protection. For heavy-duty industrial applications, 14 x 51 mm and 22 x 58 mm cartridge fuses are used, offering protection in high-current power distribution systems. The maximum ampere rating for cartridge fuses depends on the specific fuse type and manufacturer specifications.
Blade Fuses (Automotive)
Blade fuses, commonly used in automotive applications, provide circuit protection for vehicle lighting, accessories, and electrical components. Several types exist, each rated for different power levels. The ATO/ATC fuse, capable of handling up to 40A, is widely used in vehicle lighting and smaller circuits. The Mini fuse, supporting up to 30A, serves a similar function but is designed for more compact installations. The Micro fuse, rated for up to 15A, is ideal for small electronics, sensors, and control circuits. For higher-power automotive applications, Maxi fuses can handle up to 60A, making them suitable for components such as cooling fans and power seats. JCASE fuses, also rated up to 60A, are often found in fuel pumps and high-current automotive accessories.
Plug Fuses
Plug fuses are typically found in older home electrical systems, where they provide protection for household appliances and lighting circuits. These fuses are commonly available in amperage ratings of 15A, 20A, and 30A, with a standard voltage rating of 125V.
