A battery disconnect switch helps protect your vehicle's electrical system and improves safety during maintenance or storage. It serves as a convenient way to isolate the battery from the electrical circuit – minimizing the risk of power drainage or accidental short circuits.
Knowing how to wire a battery disconnect switch guarantees efficiency and safety while working on your vehicle's battery system. This guide explains the correct steps to wire a battery disconnect switch effectively.
The Purpose of a Disconnect Switch
A battery disconnect switch isolates the electrical system from the battery. It prevents power loss and protects against accidental electrical faults, especially during maintenance or long periods of vehicle inactivity. This switch offers a simple yet efficient way to cut off power without physically disconnecting the battery cables each time.
In vehicles used for work, recreation, or emergencies, a disconnect switch enhances safety by eliminating the risk of battery drain or damage caused by unexpected electrical faults. Many contractors and facility managers find it particularly useful for vehicles and equipment that see sporadic use.
Benefits of Installing a Battery Disconnect Switch
A battery disconnect switch provides more than just convenience. It enhances safety, protects your electrical system, and simplifies maintenance. Whether you manage a fleet of vehicles, work in construction, or operate heavy machinery, installing this switch improves efficiency and prolongs the life of your equipment.
- Enhanced Safety
A disconnect switch reduces the risk of electrical hazards during maintenance or repairs. By isolating the battery, it prevents accidental sparks and short circuits – protecting you and your equipment.
The added safety feature is especially important when working on high-powered systems or in environments with flammable materials. With a simple turn of the switch, you can create a secure work environment free of unexpected electrical risks.
- Battery Preservation
Disconnecting the battery when the vehicle is not in use prevents power drainage and preserves its charge. This feature is particularly useful for seasonal vehicles or equipment stored for extended periods.
A disconnect switch minimizes unnecessary wear. It helps you save money on frequent replacements and maintenance. Keeping your battery in optimal condition also guarantees consistent performance when you need it most.
- Theft Deterrence
A battery disconnect switch acts as an anti-theft measure by disabling the electrical system when not in use. Potential thieves are deterred as the vehicle or equipment cannot be started without reconnecting the battery.
An added layer of security is valuable for contractors, facility managers, and businesses that rely on expensive machinery or tools for daily operations.
- Simplified Maintenance
By cutting off the power supply, the disconnect switch allows for safer and more efficient repairs or upgrades. You can replace components or troubleshoot the electrical system without worrying about live circuits.
The feature is especially useful for electricians and contractors handling complex wiring or high-voltage systems. This will help save time and reduce potential hazards.
- Reduced Wear
Leaving the battery connected during downtime can cause strain on the vehicle's electrical components. A disconnect switch eliminates this problem by isolating the power source.
This will further reduce unnecessary stress on circuits and wiring. A preventive measure helps avoid premature failure and assures your electrical system operates smoothly for years to come.
Choosing the Right Battery Disconnect Switch
Selecting the correct battery disconnect switch assures reliable performance and long-lasting protection for your electrical system. The right switch aligns with your vehicle’s power needs and operating conditions.
- Voltage Rating
The switch must be compatible with your battery’s voltage, typically 12V or 24V for most vehicles and equipment. A mismatch can result in malfunction or damage to the electrical system. Always check the voltage rating specified in the switch's specifications to make sure it handles the power load efficiently.
- Amperage Capacity
Choose a switch with an amperage rating that matches or exceeds your system’s maximum current draw. An underrated switch may overheat or fail under high loads, compromising safety. Higher amperage-rated switches provide added durability and prevent power interruptions, especially for equipment with demanding electrical systems.
- Type of Switch
Different types of disconnect switches are available, including rotary, toggle, and keyed designs. Rotary switches offer ease of use. Meanwhile, keyed switches provide additional security by preventing unauthorized access. Consider how and where the switch will be used to select the design that best meets your operational needs.
- Material Quality
Invest in a switch made from high-quality materials like heavy-duty plastic or corrosion-resistant metals. These materials withstand harsh environments and prolonged use without compromising functionality. Durable switches are especially important for vehicles exposed to extreme conditions.
- Mounting Options
Some switches are designed for in-line use. Meanwhile, others include brackets for mounting on a panel or dashboard. Consider the available space and the need for easy access when selecting the mounting style. Proper mounting assures secure installation and convenient operation and reduces the risk of loose connections or damage.
How to Wire a Battery Disconnect Switch
Identify the Correct Disconnect Switch
Choosing the right disconnect switch depends on your vehicle's power needs. Consider the battery voltage, amperage rating, and usage frequency to confirm that the switch matches your system's requirements.
Vehicles with complex electrical systems may need a more advanced switch. Meanwhile, smaller systems can function well with a basic model.
Gather All Necessary Tools for Installation
Preparation is key for a seamless installation process. Common tools include a wrench, screwdriver, wire cutters, and electrical tape. Depending on the switch model, additional tools like crimpers or drill machines may be necessary.
Make sure the workspace is well-lit and free of hazards. Wearing protective gloves reduces the risk of injury. Having a clear plan minimizes errors. Keep the tools within reach to save time during the process.

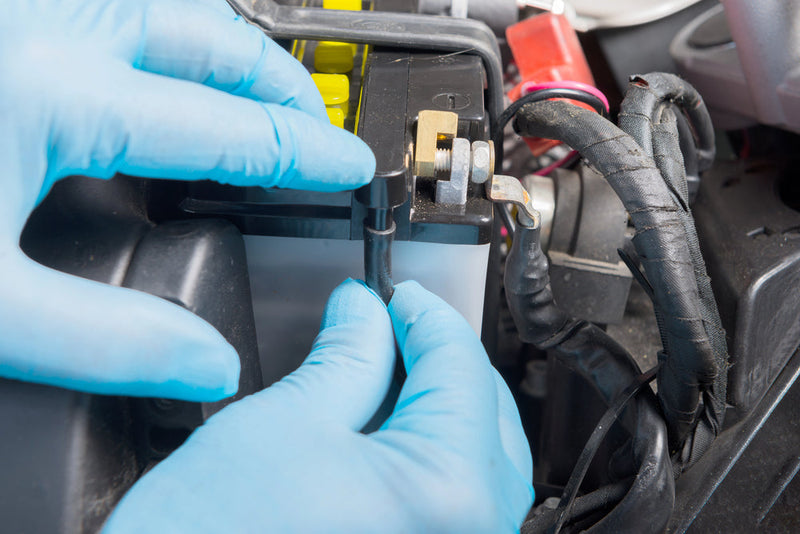

Locate the Battery and Disconnect the Cables
Locate the vehicle's battery, typically housed under the hood or in the trunk. Carefully remove the negative cable first, followed by the positive cable. This step is necessary to prevent accidental electrical discharge or sparks during the installation.
Double-check that the battery terminals are clean and free of corrosion. A stable, clean connection makes sure that the switch functions correctly and prolongs the battery's lifespan. Keep the cables secure and organized to streamline the wiring process.
Plan the Mounting Location for the Switch
Select a secure and accessible location to mount the battery disconnect switch. Common mounting points include the vehicle's engine bay, near the battery, or on the dashboard for easy operation. The location should allow for quick access while protecting the switch from potential damage caused by heat, moisture, or vibrations.
Consider the type of vehicle and the purpose of the switch when planning its position. For example, off-road vehicles might require a more protected location. Meanwhile, utility vehicles might benefit from a more visible and easily reachable spot.
Determine the Best Wiring Route for Connections
Identify the safest and most direct wiring route from the battery to the disconnect switch. Avoid running cables through areas prone to high temperatures, sharp edges, or heavy vibrations that could compromise the insulation. Secure the cables using clips or zip ties to keep them in place and prevent accidental disconnection.
Inspect the path for obstructions that might interfere with the wiring. Keep the route organized and minimize cable slack to maintain a clean and efficient setup. Clear labeling of wires can also be helpful for future maintenance.
Install the Switch Bracket or Mounting Panel
Secure the switch in the pre-determined location using its mounting bracket or panel. Use screws, bolts, or clamps provided with the switch kit. This guarantees the assembly remains stable even during vehicle movement or vibration.
Check the alignment and tighten all fasteners firmly to prevent loosening over time. Verify that the mounting position allows for easy access to the switch handle or knob while keeping it shielded from external elements.
Connect the Positive Cable to the Switch Input
Attach the vehicle’s positive battery cable to the input terminal of the disconnect switch. Use the appropriate size of connectors to assure a secure fit and avoid loose connections that could lead to electrical faults. Tighten the cable securely with a wrench. This makes sure that no exposed wire is visible to reduce the risk of short circuits.
Double-check the connection for stability before proceeding. A firm and clean connection prevents electrical resistance, which could affect the switch’s performance and the battery’s efficiency.
Attach the Output Cable to the Battery Terminal
Connect the output terminal of the disconnect switch to the battery’s positive terminal using a properly rated cable. Secure the connection tightly with a wrench so that the cable is firmly in place. Check that the insulation covers all exposed sections to prevent accidental contact with the vehicle’s metal parts.
Test the connection by operating the switch to confirm the battery disconnects and reconnects as intended. This final step guarantees the system functions correctly and safely for routine use.
Secure the Ground Wire to a Suitable Location
Attach the ground wire to an appropriate grounding point on the vehicle's chassis or engine block. This connection completes the circuit and guarantees the system operates as intended. Choose a clean, rust-free surface and use a bolt or screw to secure the wire tightly.
Make sure the ground point is free of paint, grease, or debris that could disrupt the connection. A solid ground assures consistent electrical performance and minimizes the risk of faults caused by poor grounding.
Test the Switch Functionality Before Final Installation
Before completing the installation, test the disconnect switch to confirm it functions as intended. Reconnect the battery cables and operate the switch to assure it isolates the battery power when turned off and restores it when turned on.
Observe the vehicle's electrical system for any irregularities, such as dim lights or fluctuating power, during the test. Verifying the functionality at this stage helps avoid future complications and guarantees the switch meets safety requirements.
Assure Proper Insulation of Exposed Wires
Inspect all connections and cover any exposed wires with electrical tape or heat shrink tubing. Insulation protects the wiring from environmental damage, prevents short circuits, and enhances the overall safety of the installation.
Focus on areas where cables might come into contact with metal surfaces or sharp edges. A thorough inspection and insulation process helps maintain a reliable electrical system over time.
Use Wire Looms for Neat Cable Management
Organize the cables using wire looms or sleeves to create a tidy and professional appearance. Secure the looms with zip ties or clips. This makes sure that they are firmly attached to the vehicle's structure.
Neat cable management not only improves aesthetics but also makes future maintenance easier. It prevents cables from tangling or rubbing against moving parts – reducing wear and the likelihood of accidental disconnections.
Double-Check Connections for Tightness and Security
Review all connections and confirm that they are tight and secure. Loose connections can cause intermittent power loss or overheating, leading to potential damage. Use a wrench to confirm that all bolts and screws are firmly tightened. Verify that the disconnect switch operates smoothly without resistance.
Reconnect the Battery and Test Electrical Systems
Reconnect the battery cables starting with the positive terminal, followed by the negative terminal. Make sure the connections are tight and free of corrosion. Activate the battery disconnect switch and observe the vehicle's electrical systems for proper operation.
Test key components, such as lights, ignition, and other electrical accessories, to confirm the system functions correctly. Assure the switch isolates the power completely when turned off and restores it seamlessly when turned on. This step verifies the reliability of the installation.
Label the Switch for Easy Identification
Clearly label the battery disconnect switch with its purpose and operational instructions. Use durable, weather-resistant labels or engraving to confirm that the markings remain legible over time. Proper labeling helps users quickly identify the switch during emergencies or routine maintenance.
Position the label in a visible location near the switch. Clear identification reduces confusion, especially when multiple individuals access the vehicle's electrical system, and enhances overall safety.
Inspect for Any Electrical Interference or Short Circuits
Examine the entire installation for potential electrical interference or short circuits. Look for signs of overheating, sparks, or unusual sounds when the switch is operated. Address any issues immediately to prevent damage to the vehicle or its components.
Inspect cable routing and insulation for wear or damage caused during installation.
Perform Routine Maintenance on the Disconnect Switch
Regular maintenance keeps the battery disconnect switch in optimal condition. Clean the switch and its connections periodically to remove dust, debris, or corrosion. Apply dielectric grease to metal contacts to improve conductivity and reduce wear. Check the switch's operation frequently to see if it performs as intended.
Replace Worn or Damaged Switches When Necessary
Over time, wear and tear may affect the disconnect switch's performance. Replace the switch if you notice any signs of damage, such as difficulty turning, loose connections, or inconsistent operation. Using a faulty switch increases the risk of electrical problems or safety hazards.
When replacing the switch, choose a model that meets your vehicle's requirements and install it following the same careful process.
