Knowing how to test contactors is essential for maintaining the reliability and safety of your industrial electrical systems. A malfunctioning contactor can lead to severe issues, including equipment failure and costly downtime. By following a systematic approach to testing contactors, you can ensure that your power distribution system operates smoothly and efficiently. This guide provides clear, actionable steps to help you thoroughly test contactors and identify potential issues before they escalate into more significant problems.
Ensure Power Is Disconnected Before Starting Contactors Testing
Safety is paramount when working with electrical components, so always ensure the power is disconnected before testing any contactors. Failing to do so can result in serious injury or damage to equipment. Confirm that the power source is off, and lock out the circuit breaker to prevent accidental re-energization. Taking these precautions is critical to protecting yourself and your equipment during the testing process.
Visually Inspect Contactors for Signs of Wear or Damage
A visual inspection is the first crucial step in thoroughly testing contactors. Look closely at the contactor's exterior, carefully checking for any signs of wear, corrosion, or physical damage, such as cracks or discoloration. Pay special attention to the terminals, contacts, and coil areas for any irregularities. Identifying visible issues early on can save significant time and prevent further damage, ensuring the contactor operates efficiently and prolonging its lifespan.
Use a Multimeter to Check Coil Resistance and Continuity
Using a multimeter is a reliable and precise way to check the coil resistance and continuity of a contactor. Set your multimeter to the appropriate resistance range, and then measure the coil's resistance carefully. A reading outside the manufacturer's specified range clearly indicates a faulty or damaged coil. Testing continuity ensures that the coil circuit is intact, and functioning correctly, which is vital for maintaining proper contactor operation and preventing potential failures.
Manually Operate the Contactor to Test Mechanical Functionality
Manually operating the contactor allows you to thoroughly assess its mechanical functionality and overall performance. Press the contactor's manual operation button to observe how the contacts move within the mechanism. The movement should be smooth and fluid, without any resistance or hesitation that could indicate a problem. Any stiffness, sticking, or unusual noise, such as grinding or clicking, indicates potential mechanical failure, requiring immediate attention and possibly replacement of the contactor.

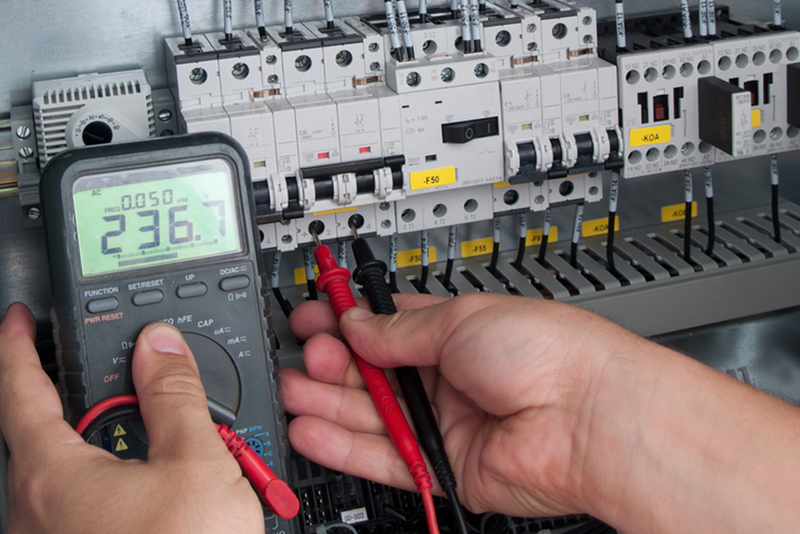

Measure Voltage at Coil Terminals When Contactor Is Energized
To verify that the contactor receives the correct voltage, measure the voltage at the coil terminals when the contactor is fully energized. Use a multimeter set to the appropriate voltage range to ensure accurate readings. The measured voltage should precisely match the coil's rated voltage as specified by the manufacturer. Any significant deviation could indicate issues with the power supply, wiring, or the contactor itself, which must be addressed promptly to avoid operational disruptions.
Test the Contact Resistance of Main Contacts Using Multimeter
Testing the contact resistance of the main contacts is crucial for ensuring efficient current flow through the contactor. Use a multimeter to measure the resistance across the main contacts when they are closed. Low resistance indicates good contact, while high resistance suggests wear or damage. High contact resistance can lead to overheating and failure, so immediate replacement may be necessary.
Verify Proper Operation by Reconnecting Power and Observing
After testing, reconnect the power and observe the contactor's operation. Listen for any unusual sounds and watch for smooth engagement and disengagement of the contacts. Ensure that the contactor responds correctly to control signals. If any irregularities are noticed, further testing or immediate replacement of the contactor may be required to maintain system reliability.
Document Findings and Replace Faulty Contactors If Necessary
Documenting your findings is essential for maintaining a detailed maintenance record. Note any issues identified during testing and the steps taken to resolve them. If a contactor is found to be faulty, replace it promptly to avoid unexpected downtime. Keeping accurate records helps track the condition of your electrical components and supports proactive maintenance strategies.
