Knowing how to replace an Eaton breaker is important for maintaining the safety and functionality of your electrical system. Over time, circuit breakers can wear out or malfunction, requiring replacement. If your breaker trips frequently or shows visible signs of damage, replacing it is a straightforward DIY project that can restore your system’s protection. Let us guide you through the process of replacing an Eaton breaker safely and efficiently.
Tools You Need
Before you start, make sure you have the right tools for the job. Proper preparation will make the replacement process smoother and safer. Here is a list of the tools you need:
- Flathead screwdriver: To remove the panel cover and pry the breaker slot if necessary.
- Phillips screwdriver: To loosen screws for removing and securing the breaker.
- Pliers: To disconnect and reconnect the wires from the breaker terminals.
- Voltage tester: To check for power before working inside the panel.
- Replacement Eaton circuit breaker: Make sure the new breaker matches your system’s amperage and voltage specifications.
Having all the necessary tools on hand before you begin will help the job go smoothly and prevent any delays.
Step-by-Step Guide to Replacing Your Eaton Breaker
-
Turn Off the Main Power
The first step in replacing your Eaton breaker is to turn off the power to the electrical panel. Locate the main breaker at the top of your electrical panel and flip it to the “off” position. This will cut off power to the entire panel, ensuring that you will not be working with live wires.
Safety is crucial when working with electrical components. Always turn off the power. Even if the main breaker is off, double-checking ensures safety before proceeding.
-
Remove the Panel Cover
Next, you need to remove the panel cover to gain access to the breakers inside. Use a flathead screwdriver to unscrew the fasteners securing the cover. Once the screws are removed, gently take off the cover, being careful not to damage it. With the cover removed, you will be able to clearly see the Eaton circuit breakers and assess the one that needs replacing. Take this time to check if the breakers are labeled correctly for easy identification.
-
Test for Power
Before proceeding further, use your voltage tester to make sure the panel is de-energized. This is an important safety step that should not be skipped. Even though you have turned off the main breaker, there may still be live power in parts of the panel. Test the terminals and wires to make sure there is no power flowing.
If you find any voltage, double-check that the main breaker is properly turned off. If unsure, you might want to turn the power off at the main electrical disconnect outside or call a professional to verify everything is safe before continuing.
-

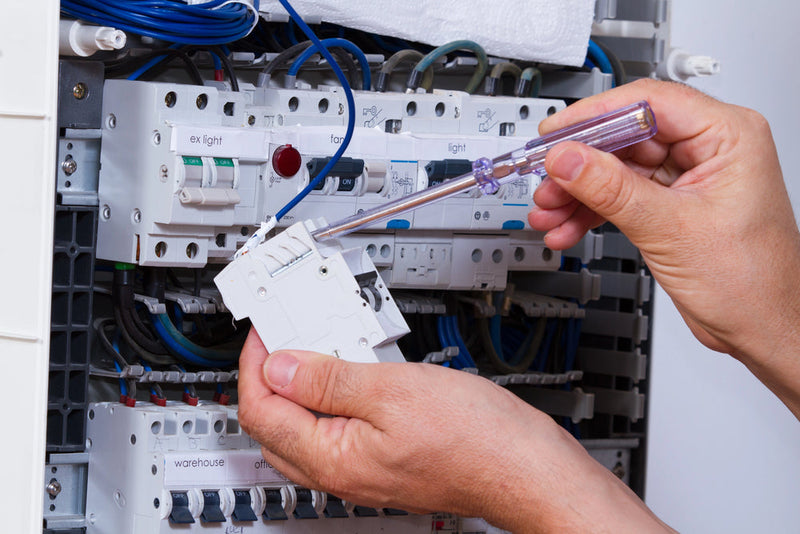

Disconnect the Faulty Breaker
Now, locate the Eaton circuit breaker that needs to be replaced. Use a Phillips screwdriver to loosen the screws securing the wire to the breaker’s terminal. Carefully remove the wire, noting which terminal it is connected to. This is important because you need to connect the wire to the same terminal on the new breaker. Pay attention to the wire’s condition—make sure it is not frayed, damaged, or corroded before reconnecting it.
After disconnecting the wire, gently pull the breaker out of its slot. This should be easy for plug-in-style Eaton breakers. However, you may need to release a tab or mechanism that holds the breaker in place for other types of breakers. Be patient and take care not to damage the panel during this process.
-
Install the New Eaton Breaker
Take the replacement Eaton circuit breaker and slide it into the same slot where the old breaker was removed. You should feel it click securely into place. If you are installing a plug-in type breaker, it should slide right into the slot with ease.
Once in place, reconnect the wire to the new breaker’s terminal. Use the Phillips screwdriver to tighten the terminal screw and make sure the wire is securely attached. It is crucial that the wire is fastened tightly because a loose connection can lead to overheating, arcing, or even fires.
Before you proceed, inspect the wire to confirm it is not damaged or frayed. This will ensure a safe, long-lasting connection with the new breaker.
-
Replace the Panel Cover
Once the new Eaton circuit breaker is properly installed and connected, you can move on to replacing the panel cover. Align the cover with the panel and screw it back into place using the flathead screwdriver. This step is necessary for securing the electrical panel and ensuring it is properly sealed. A correctly installed panel cover will prevent dust, debris, or moisture from entering the panel, maintaining the panel's safety.
-
Turn the Power Back On
After securely replacing the panel cover, turn the power back on. Start by flipping the main breaker back to the “on” position. This will re-energize the electrical panel. Once the main power is on, flip the new Eaton breaker to the “on” position.
Observe if the breaker stays on without tripping. If the breaker stays on and functions normally, your installation was successful. However, if it trips immediately, double-check your work to make sure the wire is properly connected and that the Eaton breaker is correctly rated for your system’s needs.
When to Replace an Eaton Circuit Breaker
Several signs indicate it is time to replace an Eaton circuit breaker. If the breaker trips frequently, feels hot to the touch, or is physically damaged, it is time for a replacement. Here are a few key signs to look out for:
- Frequent Tripping: If the breaker trips often, it may no longer be able to handle the electrical load.
- Heat or Overheating: A hot breaker may struggle to manage current, leading to system failure or fire hazards.
- Visible Damage: Any scorch marks, cracks, or other damage to the breaker are clear signs it needs replacing.
- Breaker Will Not Reset: If the breaker will not reset or stays in the "off" position, it is likely broken and should be replaced.
- Weak or Unstable Connections: If the connections to the breaker feel loose or unstable, it is a sign that the internal components may be deteriorating. Loose connections can cause intermittent power loss or increase the risk of arcing, which can lead to fires or other serious hazards.
Why Choose Eaton Circuit Breakers?
Eaton circuit breakers are known for their reliability, safety features, and ease of use. They offer superior protection for electrical systems, ensuring that circuits are shut off when overcurrent or short circuits occur. Eaton breakers are durable and built to last, making them an ideal choice for both residential and commercial electrical systems.
Additionally, Eaton circuit breakers offer a variety of protection options, including thermal-magnetic protection, which safeguards against overloads and short circuits. This makes sure your electrical system operates safely, efficiently, and without interruptions.
Safety Considerations
- Always turn off the power: Double-check that the main power is off before beginning any electrical work.
- Choose the right replacement breaker: Make sure your new Eaton circuit breaker matches your electrical system's amperage and voltage requirements.
- Seek professional help if needed: It is always safer to consult a licensed electrician if you are unsure about any part of the process. Incorrect installation can cause damage to your electrical system and pose safety risks.
