Manual transfer switches play a vital role in safely switching power sources from the utility to a backup generator. This device prevents electrical backfeed that could damage equipment or endanger utility workers.
Knowing how to install a manual transfer switch correctly helps maintain power continuity during outages and protects your home’s electrical system. This guide covers practical steps for installing a manual transfer switch, with a focus on accuracy and safety for residential or small commercial setups.
How to Install a Manual Transfer Switch
Planning Your Manual Transfer Switch Installation
Start by identifying which home circuits or appliances you want to operate during a power outage. Common choices include refrigerators, heating systems, and essential lighting. The total power requirement for these devices will determine the size and rating of the transfer switch and generator needed.
Before installation, check the generator's amperage capacity to confirm it can handle the combined load of the selected circuits. It is acceptable if the combined amperage exceeds the generator's rating, as long as all devices do not operate simultaneously.
Selecting circuits that run separately avoids overloading the generator.
Preparing the Electrical Panel
Turn off the main power supply to the circuit breaker panel. This step guarantees safety during installation. Remove the panel cover carefully to access the circuit breakers and wiring inside.
After that, remove the cover of the manual transfer switch unit. This device will disconnect the home from utility power and connect it to the generator when activated. The transfer switch size must match the power demands of the circuits you selected earlier.
Wiring and Connections
Cut the insulating tubes that will cover the wiring to a workable length, making it easier to handle. Attach connectors to the wires with PVC cement for a secure fit.
Feed the wiring harness of the transfer switch through the designated knockout holes, usually found on the underside of the unit. The wires will connect to the new circuit breakers inside the switch box.

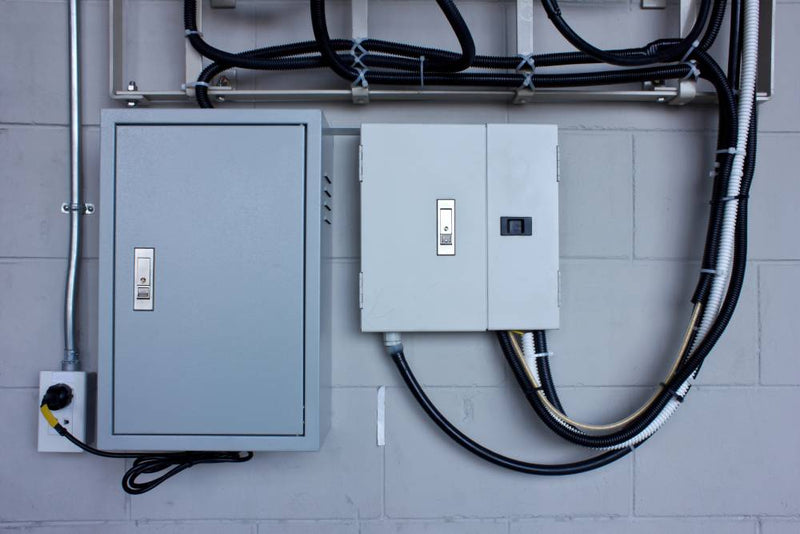

Mount the transfer switch to the wall near the electrical panel. It should be positioned approximately one and a half feet from the center of the main breaker box to allow for convenient wiring connections.
Pull the wires through the insulating tube, then strip about five-eighths of an inch of insulation from each individual wire end. Connect each wire to its corresponding terminal in the transfer switch. Label the wires clearly to match each appliance or circuit for easier future maintenance.
Attach black wires to the utility 2-pole breaker inside the transfer switch. White wires should connect to the neutral bus bar, while green wires connect to the grounding bar. If a grounding bar is absent, connect the green wires to the neutral bar.
Once all wires are connected, replace the transfer switch cover.
Reconfiguring Circuits
Confirm again that the main power is off before proceeding. Remove wires for selected appliances from their original circuit breakers in the panel.
Strip the wire ends as before and connect these wires to the corresponding terminals in the transfer switch using wire connectors. Attach these wires to the new 2-pole breakers inside the transfer switch.
Detach the old circuit breakers associated with these wires, freeing up space in the panel. Connect the white neutral wire to the neutral bus bar and the green ground wire to the grounding bar or neutral bar if needed. Replace the electrical panel cover and restore power to the main load center.
Final Steps and Testing
Follow the manufacturer's instructions to switch power from utility to generator and back. Test the manual transfer switch by powering up the generator and confirming that selected circuits receive power. This testing guarantees proper installation and operation during actual power outages.
Always double-check all wiring and labels for accuracy. Safety must guide every step to avoid electrical hazards.
