Checking fuse voltage is a vital step in maintaining the electrical systems in your home or business. Fuses are designed to protect circuits by cutting off the power if an overload occurs. Testing the voltage of a fuse sees to it that your electrical system is operating properly, and it can prevent costly damage or even potential hazards.
Understanding the Basics of Fuse Voltage Testing
Before beginning, it is important to understand what fuse voltage testing involves. Fuses typically operate within specific voltage ranges depending on their design. When performing the test, you are checking to see if the fuse is still providing the correct voltage to the circuit. If a fuse is faulty, it will no longer function properly and may need to be replaced.
The voltage check process is simple but important. With a multimeter, you can test the voltage at the fuse box to determine if the fuse is still performing its job. A multimeter is used to measure electrical potential difference, which is the voltage present at the fuse terminal.
When testing a fuse, remember to turn off the power before beginning. This checks on the safety during the testing process. Using the correct testing equipment, like a Bussmann fuse block, can help you assess the fuse condition accurately.
How to Test Voltage at the Fuse Box
To begin testing fuse voltage, you will first need to locate the fuse box. The fuse box is usually positioned near the electrical panel and is the central hub for your home’s electrical system. Once you have found the fuse box, open it carefully to access the fuses.

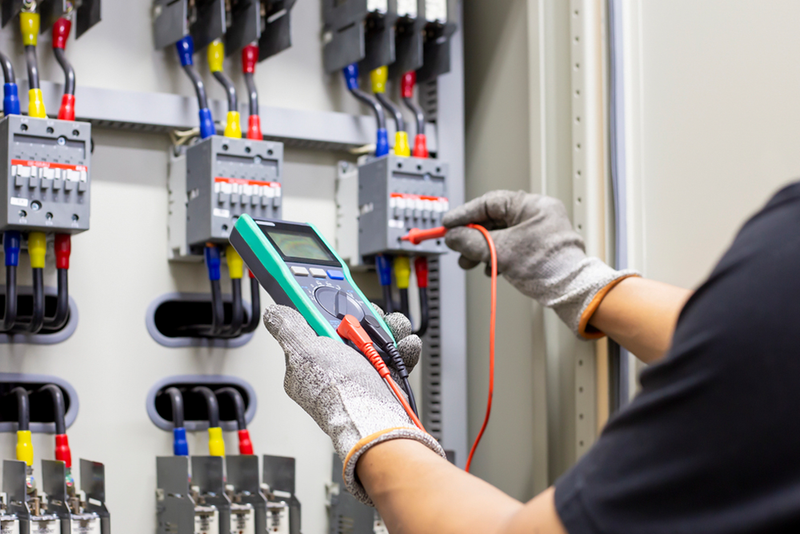

Using a multimeter set to measure DC or AC voltage (depending on the type of system), place one lead on the fuse terminal and the other on the ground. This setup allows you to measure the potential difference across the fuse. If the fuse is intact, you will receive a voltage reading, which means the fuse is functioning correctly.
If no voltage is detected, it is likely that the fuse has blown and needs to be replaced. In such cases, replacing the fuse with a new one makes sure that the circuit is restored to proper functioning. This process of testing voltage at the fuse box is simple but effective for identifying issues within your electrical system.
Testing Fuse Voltage with a Multimeter
A multimeter is one of the most reliable tools when it comes to checking the voltage of a fuse. This device can measure both the voltage and the current, giving you an accurate reading of the fuse's health. First, set your multimeter to measure DC or AC voltage, depending on the type of fuse you are testing.
Place the multimeter’s black lead on the ground terminal, and the red lead on the terminal of the fuse. Make sure that the multimeter is set to the correct voltage range. If the fuse is working correctly, you will see a voltage reading that matches the fuse rating.
If the multimeter shows no voltage or a reading lower than expected, the fuse has likely blown or is no longer functional. In that case, it is time to replace the fuse with a new one from Essential Electric Supply’s wholesale fuse collection.
Identifying the Type of Fuse You Are Testing
Different types of fuses exist for different applications. It is important to know which type of fuse you are working with before beginning the voltage check. Fuses can be classified by their voltage rating, current rating, and design type. For example, Bussmann fuse blocks are often used in industrial settings and are designed to protect larger equipment.
Knowing the type of fuse can also help you determine what kind of multimeter settings are needed. For example, low-voltage fuses may require different settings on the multimeter compared to high-voltage fuses. Be sure to check the specifications for your particular fuse before starting the test.
Testing the wrong fuse type or using an improper multimeter setting could lead to inaccurate results or even damage to your testing equipment. It is important to always check the fuse specifications before testing for compatibility. Using the wrong settings could also cause a malfunction in the multimeter, leading to further complications.
Safety Precautions to Take While Testing Fuses
When checking fuse voltage, safety should always be a top priority. Fuses are part of an electrical circuit that carries current, which can be hazardous if mishandled. Always use insulated tools, and see to it that your multimeter is rated for the voltage levels you are testing.
Turn off the power before testing the fuse to prevent electrical shocks or accidental short circuits. Make sure that the multimeter is working properly before taking any readings. If you are unsure of any part of the process, it may be best to consult with a professional to avoid any potential risks.
By taking these precautions, you can safely test fuse voltage without putting yourself or your electrical system in danger.
Common Issues with Fuses that Affect Voltage Readings
There are a few common issues that can cause inaccurate voltage readings when testing fuses. One of the most common issues is a blown fuse. When a fuse blows, it will no longer conduct electricity, which leads to a zero voltage reading on the multimeter.
Another issue could be a faulty connection in the fuse box. If there is corrosion or dirt on the fuse terminals, it could affect the voltage reading. It is important to keep the fuse box clean and make sure all connections are secure to get an accurate voltage reading.
If you suspect any of these issues, check the fuse and its connection closely. Replacing the fuse or cleaning the terminal might be necessary to restore the correct voltage reading.
When to Replace a Fuse and How to Choose the Right One
Replacing a fuse is sometimes necessary if it is no longer providing the correct voltage. If your fuse is blown, you will need to replace it with a new one. It is important to select the right replacement fuse to match the voltage and current requirements of your circuit.
When replacing a fuse, make sure that the new one matches the exact specifications of the old one. A fuse that is too large or too small for the circuit can lead to further damage. If you are unsure which fuse to choose, consult with a professional or refer to the manufacturer’s instructions.
Next Steps for Maintaining Your Fuse Box and Electrical System
Regular maintenance of your fuse box is needed for the longevity of your electrical system. It is important to periodically check fuses for proper voltage and check that all connections are secure. Replacing fuses as needed and maintaining the fuse box’s cleanliness will help prevent electrical failures.
If you encounter any issues during your voltage testing or need a replacement fuse, contact Essential Electric Supply. We offer a wide range of high-quality fuses and fuse blocks, including wholesale fuse options, to keep your electrical systems running smoothly.
Keep Your System Running Smoothly
Proper fuse maintenance is required to keep your electrical systems running smoothly. By knowing how to check fuse voltage, you can make sure your circuits are functioning properly and prevent unnecessary issues. Regular fuse checks help identify problems early and maintain the safety and efficiency of your system.
Essential Electric Supply offers a wide range of wholesale fuse options for all your needs. Our team is ready to assist with expert advice and top-tier customer service. For more information or to purchase your next fuse, contact us today.
