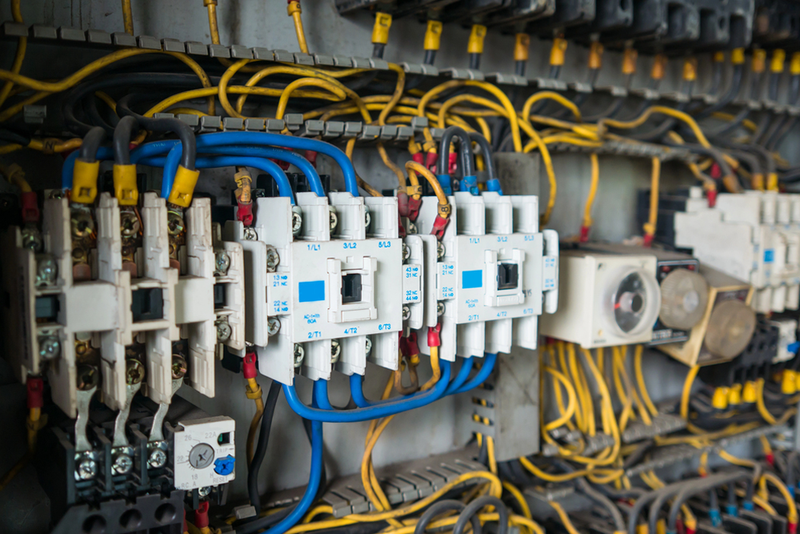

A motor control contactor is a device used to switch an electrical circuit on or off. Its role in electrical systems is significant as it helps regulate motor-driven machinery in many industries. The ability to control large motors remotely, safely, and efficiently makes it an indispensable part of modern electrical systems. As technology continues to advance, motor control contactors continue to provide the functionality required for automation and seamless operation of motors. Let's find out more about how these systems work and their components.
Components of a Motor Control Contactor
Motor control contactors consist of multiple components that work together to control the flow of electricity. These components are engineered for efficiency and reliability, ensuring seamless operation. Here's an in-depth look at the key parts that make up a motor control contactor:
- Coil
At the core of the contactor is the coil, an electromagnet responsible for activating or deactivating the electrical circuit. When current passes through the coil, it generates a magnetic field that pulls or repels the contacts, allowing the circuit to open or close. This magnetic force is the driving mechanism behind the operation of the contactor.
- Contacts
The contacts are conductive elements that control the actual flow of electricity by opening or closing the circuit. They are specifically designed to handle high electrical currents without sustaining damage. There are two main types of contacts: main contacts, which carry the load current necessary for motor operation, and auxiliary contacts, which serve signaling purposes and support additional system functionalities.
- Arc Suppression
To prevent electrical arcing—an issue that occurs when contacts open and close—arc suppression mechanisms are employed. Without suppression, arcing can lead to contact degradation and reduced efficiency over time. Various techniques, such as resistors, capacitors, or blowout coils, are used to minimize or eliminate this effect, thereby enhancing the longevity and reliability of the contactor.
- Spring Mechanism
The spring mechanism plays a key role in maintaining the stability of the contacts. Springs ensure that the contacts remain securely in place and only move when influenced by the coil’s magnetic force. This prevents unintended movement, maintaining precise control over the circuit’s operation.
- Auxiliary Contacts
Auxiliary contacts provide additional functionality by supporting remote monitoring and control of the contactor. These secondary contacts can be configured as normally open or normally closed and are often used for tasks such as activating indicator lights, alarms, or other interconnected devices within the system.
- Housing
Encasing all these internal components is the housing, which serves as a protective barrier against external environmental factors like dust, moisture, and mechanical impact. The housing not only safeguards the internal elements but also ensures operator safety by isolating high-voltage components and preventing accidental contact.
- Overload Relay (Optional)
In some motor control contactors, an overload relay is included as an added safety feature. This component monitors the electrical current flowing to the motor and automatically disconnects the power supply if excessive current is detected. By preventing overheating and potential motor damage, overload relays are particularly valuable in industrial applications where motors operate under varying load conditions.
Mechanism of Action for Electromagnetic Contactors
The operation of electromagnetic motor control contactors begins with an electromagnet inside the device. This magnet gets energized when electrical current flows through it, causing a physical action that pulls in a set of contacts. The contacts then close, completing the circuit and allowing the motor to receive power. This action is reversible. When the electromagnet is de-energized, a spring mechanism forces the contacts to open, interrupting the flow of electricity to the motor. This basic mechanism works under the principle of electromagnetism, converting electrical energy into mechanical motion. This switch action occurs with speed and reliability, ensuring motors only operate when needed, reducing energy consumption and maintaining safety standards. These contactors can handle a wide range of current loads, making them suitable for many motor applications.
Types of Motor Control Contactors Available
Motor control contactors are available in various designs, each suited for specific applications, voltage ranges, and current capacities. The right choice depends on factors such as system complexity, load size, and environmental conditions. Selecting the appropriate contactor ensures both efficiency and safety in motor control operations.
One of the simplest types is the single-pole contactor, designed for single-phase motor control applications. Due to their straightforward design, these contactors are cost-effective and commonly used in residential settings or for light-duty motors requiring lower power.
For slightly more complex applications, double-pole contactors offer a more versatile solution. These contactors can operate in both single-phase and three-phase systems, allowing control over multiple motor circuits. They are particularly useful in setups that require dual control or protection for multiple circuits.
In industrial environments, three-phase contactors are essential. Designed to handle larger electrical loads, these contactors provide reliable switching for heavy-duty motor applications. Their ability to manage high power demands makes them a staple in manufacturing and large-scale machinery operations.
Some applications require a controlled delay before switching, which is where time-delay contactors come in. These contactors feature a built-in delay mechanism that ensures motors do not start or stop immediately. This delay is particularly beneficial in preventing power surges during startup or allowing sequential operations in a system.
Another widely recognized option is Square D contactors, manufactured by a reputable brand known for reliability and safety. Square D offers a diverse range of motor control contactors suited for residential, commercial, and industrial applications. These contactors are highly durable, with advanced safety features and versatile configurations, making them a preferred choice for professionals seeking long-lasting performance in power management systems.
Benefits of Using Motor Control Contactors
Motor control contactors provide numerous advantages that enhance the functionality and protection of electrical motors. Their ability to regulate electrical flow not only improves motor performance but also extends the lifespan of machinery by reducing wear and tear.
One of the most significant benefits is increased reliability. By ensuring that motors operate under optimal conditions, contactors help prevent unexpected failures that could result in costly downtime. This reliability is crucial in industrial applications where continuous operation is necessary.
Improved safety is another key advantage. Motor control contactors help protect both equipment and personnel by regulating electrical currents and isolating power during maintenance. This reduces the risk of electrical shocks, short circuits, and fire hazards, making them an essential safety component in electrical systems.
Additionally, these contactors contribute to energy efficiency by offering precise control over motor operations. By minimizing unnecessary energy consumption, they help lower electricity costs for businesses and homeowners alike.
Another advantage is easy integration into existing electrical systems. Motor control contactors are designed to be compatible with a wide range of applications, making them a versatile and dependable solution across various industries.
Selecting the Right Contactor for Your Motor
Choosing the correct motor control contactor requires careful evaluation of key factors to ensure optimal performance and longevity. One of the primary considerations is the motor power rating. The contactor must be capable of handling the motor’s power requirements, as an overloaded contactor may fail, while an undersized one will struggle to support the motor’s operation.
Voltage compatibility is another crucial factor. The contactor should match the voltage of the motor to prevent damage to either component. Using a contactor with an incorrect voltage rating can lead to inefficiencies and potential equipment failure.
Environmental conditions also play a role in the selection process. Motors that operate in extreme conditions—such as high humidity, dust, or extreme temperatures—require contactors designed to withstand these challenges. Selecting a contactor with appropriate environmental protection ensures consistent performance and durability.
Finally, the application requirements must be considered. Different motors have varying load types and switching frequencies. If the motor operates in a system that requires frequent switching, it is essential to choose a contactor specifically designed for such applications. This helps maintain efficiency, reliability, and longevity.
Common Issues with Motor Control Contactors
Motor control contactors, while essential for smooth motor operation, can encounter certain problems over time. One of the most common issues is contact wear, which occurs as the electrical contacts inside the contactor degrade due to frequent switching. This leads to arcing, reducing the efficiency of the motor and eventually causing a malfunction. Over time, this wear can result in the need for costly repairs or replacements. Another issue that often arises is coil failure, which can prevent the contactor from engaging or disengaging the circuit. Without proper coil function, the motor may not start or stop as expected, causing disruptions in operation.
In addition to contact and coil issues, dirt and debris accumulation on the contactor can interfere with its functionality. Contaminants can cause short circuits or prevent the contactor from fully closing, compromising its ability to control electrical flow. High temperatures can also cause damage to the contactor’s components, leading to failure. Regular inspection and maintenance can help identify and address these issues early, ensuring that the motor operates without interruptions and minimizing the risk of equipment damage.
Preventative Maintenance Tips for Contactors
Preventative maintenance is key to extending the life of motor control contactors and ensuring reliable motor operation. One of the best practices is to conduct regular visual inspections for any signs of wear or damage. Checking for any discoloration, overheating, or physical deterioration on the contactor helps identify potential issues before they lead to failure. Regularly cleaning the contactor and removing any dust or debris can also prevent contact problems and reduce the risk of short circuits.
Another important aspect of preventative maintenance is to inspect the electrical connections and ensure that all wiring is tight and secure. Loose connections can cause poor electrical contact, leading to overheating and equipment failure. Regular testing of the contactor’s functionality, including checking its coil and contacts, can also help detect early signs of wear and prevent unexpected breakdowns. By performing these maintenance tasks regularly, the contactor remains in optimal condition, ensuring the efficient and safe operation of the motor for a longer period.
