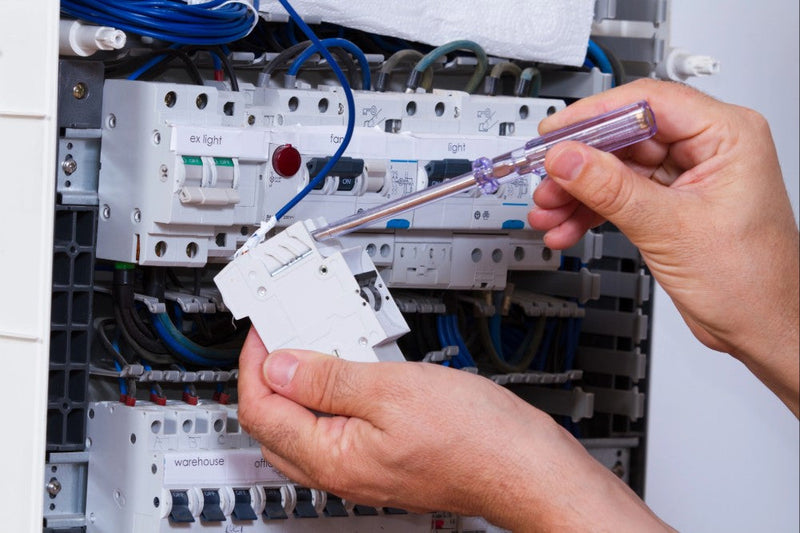

Understanding the difference between a disconnect switch and a circuit breaker is fundamental for designing and maintaining a safe and efficient electrical system. While both devices serve important roles in controlling electricity, their functions, applications, and protection mechanisms vary greatly.
Knowing which one to use in your facility can help ensure compliance with electrical codes and reduce risks to people and equipment.
What Is a Disconnect Switch?
A disconnect switch, also known as an isolator, is a manually operated device used to completely de-energize a section of an electrical circuit. Its primary purpose is to provide a visible and verifiable open point that ensures power is cut off before maintenance or inspection work begins.
Disconnect switches do not provide automatic protection against electrical faults. However, fused disconnect switches include built-in fuses that can break the circuit if a fault occurs.
They are a safety requirement in many industrial and commercial applications where physical isolation and lockout/tagout procedures are mandatory.
What Is a Circuit Breaker?
A circuit breaker is an automatic switching device that interrupts electrical current when an overload or short circuit is detected. It protects electrical systems by opening the circuit under fault conditions, preventing damage and reducing fire risks. Circuit breakers can also be manually reset after tripping, making them highly convenient for ongoing use.
There are many types of breakers, including miniature circuit breakers (MCBs), molded case circuit breakers (MCCBs), and insulated case breakers—each with different current capacities and use cases. Circuit breaker parts are also available for maintenance and replacement of key components.
Key Differences: Disconnect Switch Vs. Circuit Breaker
- Operation: Circuit breakers automatically trip during fault conditions and can also be manually operated. Disconnect switches must be manually turned off and on.
- Primary Function: Circuit breakers protect circuits from overloads and short circuits. Disconnect switches isolate equipment from power to allow safe maintenance.
- Fault Protection: Circuit breakers offer built-in fault detection and interruption. Disconnect switches only offer protection if fused, and even then require replacement of the fuse after an event.
- Arc Suppression: Circuit breakers include arc-extinguishing mechanisms. Disconnect switches are not designed to open circuits under load and may be dangerous if used that way.
- Reusability: Circuit breakers can be reset. Fused disconnect switches require new fuses after a fault; non-fused switches do not provide fault interruption at all.
- Applications: Circuit breakers are common in main service panels and branch circuits. Disconnect switches are installed near equipment to comply with safety regulations and enable isolation.
Using Both for Comprehensive Safety
Many systems use both components together. Circuit breakers provide automatic fault protection, while disconnect switches allow safe manual isolation. For example, in a motor control center, a circuit breaker might protect the feed, and a nearby disconnect switch allows maintenance workers to safely de-energize the motor.
Circuit breakers and disconnect switches are both vital to the safe and efficient operation of electrical systems, but they are not interchangeable. Understanding their unique purposes helps facility managers, electricians, and engineers design more resilient, code-compliant systems that protect both people and infrastructure.
