Installing a circuit breaker is a fundamental task in electrical work, whether you're upgrading your panel, adding new circuits, or replacing an old breaker. It’s key to approach the installation with a strong understanding of both the process and the components involved. This guide will take you through each step of the circuit breaker installation process while also explaining how the different parts of a breaker fit into the overall system. Understanding these components will help you make sure of a smooth and safe installation.
Understanding Circuit Breakers and Their Parts
Before going into the installation process, it’s vital to familiarize yourself with the different parts of a circuit breaker and how they function. Circuit breakers are designed to protect electrical systems from overloads and short circuits by automatically cutting off the power when an issue is detected. However, circuit breakers are more than just simple switches—they include various parts that contribute to their effectiveness.
Auxiliary Contact
Auxiliary contacts are used to bring remote indication of the breaker's status. The feature is particularly important in large or industrial systems, where the breaker may not be easily accessible.
Auxiliary contacts allow for monitoring the open or closed position of the breaker from a remote location. This makes sure that you can track system performance without needing to physically inspect the panel. If you're installing a breaker with an auxiliary contact, it's necessary to wire it correctly during installation to guarantee accurate signaling.
Bell Alarm
A bell alarm is another feature you might encounter during installation. It triggers an alert if the breaker trips, notifying you immediately of any faults in the system. When wiring a breaker that includes a bell alarm, make sure that it’s correctly connected to the breaker’s trip mechanism. This will help detect overloads or short circuits quickly, allowing you to address the issue before it becomes a bigger problem.
Circuit Breaker Fuse
Although circuit breakers provide automatic protection by shutting off power during an overload, certain installations may also require fuses for additional protection. A circuit breaker fuse can act as a secondary safeguard, further protecting your system from severe electrical surges. Confirm if the fuse is correctly rated for your circuit during installation and installed in conjunction with the breaker for comprehensive protection.
Closing Coil
If you're dealing with a more complex or automated electrical system, you may need to install a closing coil as part of the circuit breaker setup. A closing coil allows the breaker to be remotely closed via electrical control. This feature is useful in systems that require frequent switching or are difficult to access physically. Make sure the closing coil is properly wired to the control circuit during installation.
Electrical Operator
The electrical operator enables remote operation of the breaker, offering added convenience, especially in industrial applications. During installation, the operator needs to be securely mounted and properly wired to make sure that the breaker opens and closes as required by the control system.
Enclosure and Insulated Case
Guaranteeing the breaker is housed in a proper enclosure is critical for safety. Enclosures protect the breaker from environmental factors like moisture, dust, and physical damage. Likewise, insulated cases provide an additional layer of protection against electrical shocks. When installing a circuit breaker, it's needed to verify that these protective components are properly installed to maintain system integrity and user safety.
Load Center
The load center, or breaker panel, serves as the core of your home or business electrical system. Since the circuit breaker will be installed here, proper grounding and secure wiring are key or the safety of the entire system. When installing the circuit breaker in the load center, it’s necessary that each wire is connected to the correct terminal. Proper grounding is equally necessary to prevent electrical hazards and maintain system stability.
Lug Terminal Kit
During the installation process, a lug terminal kit is often required to create secure electrical connections between the breaker and the wires. The lug terminal fastens the wires securely, preventing loose connections that could lead to overheating or electrical arcing. Establishing a stable connection at this stage of the installation is vital for the system’s longevity and safety.
Molded Case
The molded case protects the internal components of the breaker and prevents exposure to external elements. When installing the breaker, it is important to verify that the molded case remains intact and is properly seated within the load center. Any damage to the case could expose critical parts to dust, moisture, or accidental contact, which could compromise both safety and performance.
Mounting Hardware
The mounting hardware plays a vital role in securing the breaker inside the load center. This includes screws or brackets that hold the breaker in place. Firmly mounting the breaker prevents it from shifting or becoming dislodged during operation. Taking this step contributes to a secure and reliable installation.
Motor Operator
In systems that require remote operation, a motor operator may be used, which automates the opening and closing of the breaker and allows for remote operation without manual intervention. During installation, the motor operator should be wired correctly to the control system to facilitate smooth operation, particularly in industrial or automated settings.
Gather the Required Tools and Materials
Before beginning the installation, make sure you have all the necessary tools and materials at hand. This will save time and guarantee a smooth installation process without interruptions. Here’s a list of tools typically required for circuit breaker installation:
- Screwdrivers (both flathead and Phillips)
- Wire stripper
- Pliers
- Voltage tester
- Flashlight
- Electrical tape
- Breaker lock (if required by local electrical codes)
- Safety gear: Insulated gloves and safety goggles
Additionally, you’ll need the correct type of circuit breaker for your panel, the appropriate wire size if you’re running a new circuit, and any extra components like fuses, auxiliary contacts, or bell alarms depending on your installation requirements.
Turn Off the Power and Test the Area
Safety should always be your top priority when working with electrical systems. Before starting the installation, turn off the main power supply at the panel. This will prevent exposure to live wires during the installation process.
Use a voltage tester to verify that the circuit you're working on is de-energized. Even after turning off the power, there could be residual current or other circuits in the panel that are still live, so thorough testing is needed.
Remove the Panel Cover
After confirming that the power is off, carefully proceed to remove the panel cover to access the breaker slots within the load center. Handling the cover gently will help avoid damaging any components. If visibility is limited, a flashlight can provide illumination, making it easier to see what you're working with inside the panel.
Be sure to set the screws aside in a safe place, as you’ll need them to securely reattach the cover after completing the installation. Taking these precautions will help guarantee a smooth and efficient installation process.
Select the Correct Breaker Slot
Most breaker panels feature specific slots designated for adding new breakers. Begin by identifying an available slot for your new breaker installation. Matching the new breaker to the amperage and voltage requirements of the circuit holds significant importance for maintaining proper functionality. When installing a double-pole breaker for 240-volt circuits, two adjacent slots will be necessary. In contrast, single-pole breakers require only one slot.
Install the Circuit Breaker
Now that you’ve identified the correct slot, insert the breaker into the panel. First, connect the breaker to the bus bar inside the panel, which provides the electrical power. Once the breaker is connected to the bus bar, snap it into the designated slot, making sure it is securely in place. Follow the manufacturer’s instructions for proper alignment and installation, as improper installation can lead to malfunction or inadequate protection for the circuit.
Connect the Circuit Wires

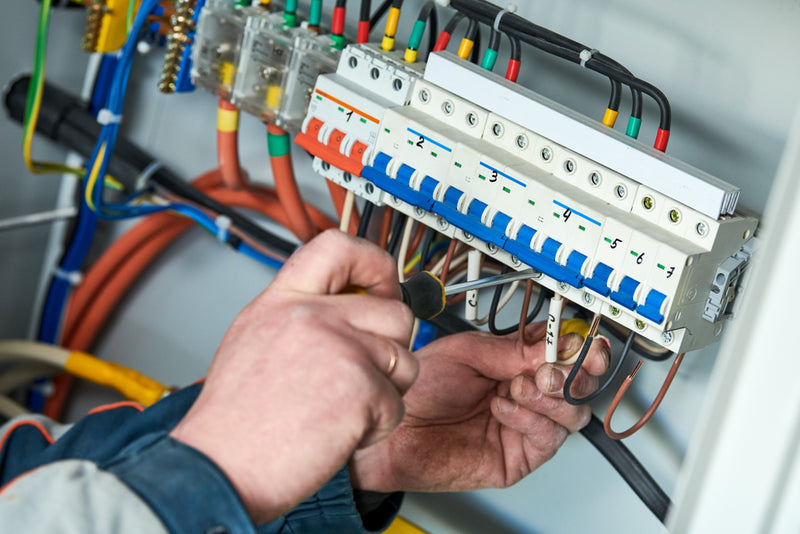

After the breaker is installed, proceed to connect the wires. Strip the ends of the wires using a wire stripper, and then attach them to the breaker’s terminals. Typically, the hot wire (black or red) connects to the breaker, while the neutral wire (white) connects to the neutral bar inside the panel. Tighten the connections securely with a screwdriver so that no wire is exposed outside the terminals. Loose connections can result in overheating or electrical arcing, so it's important that the wires are firmly in place.
Test the Installation
Once the installation and wiring are complete, it’s time to test the system to confirm everything is functioning correctly. Turn the main power supply back on and use your voltage tester to check that the breaker is receiving power. Flip the breaker’s switch to verify it operates smoothly. If your installation includes components like an auxiliary contact, bell alarm, or motor operator, test these features as well to confirm they are working as intended.
Reattach the Panel Cover
Once you’ve tested the breaker and confirmed that it’s functioning correctly, reattach the panel cover. Use the screws you set aside earlier and fasten the cover securely.
Label the Circuit
Finally, label the new breaker in the load center to indicate which circuit it controls. Proper labeling allows you or anyone else working on the electrical system in the future to quickly identify the circuits.
Grounding the Circuit Breaker
One of the key aspects of electrical installations is proper grounding. Grounding your circuit breaker creates a safe pathway for electricity to travel back to the ground in case of a short circuit or fault. If the breaker is not properly grounded, the risk of electrical shock increases, as stray currents won’t have a safe route out of the system.
In residential installations, the grounding wire (typically bare copper or green) should be connected to the ground bus bar in the panel. For commercial or industrial installations, additional grounding requirements may apply depending on local codes. Checking these regulations and using the correct wire gauge for grounding holds great importance.
Circuit Load Calculation
Before installing a circuit breaker, verifying that the circuit won’t be overloaded is important. Overloading a circuit can lead to frequent tripping or even fire hazards due to overheating. Each breaker is rated for a specific load, typically measured in amperes (amps), so the combined wattage of the devices on the circuit should not exceed this rating.
To calculate the load on a circuit, first determine the wattage of each device that will be connected. Divide the total wattage by the voltage of the circuit (usually 120 or 240 volts in residential settings) to find the amperage. For example, if you plan to run 1800 watts of devices on a 120-volt circuit, the amperage would be 1800 watts divided by 120 volts, resulting in 15 amps.
If the circuit is protected by a 15-amp breaker, this represents the maximum safe load. Aim to keep the load at or below 80% of the breaker's capacity to allow for surges and fluctuations. For a 15-amp breaker, that means no more than 12 amps should be consistently drawn from the circuit. If your calculated load exceeds this range, consider installing a higher-rated breaker or distributing the devices across multiple circuits.
Compliance with Local Electrical Codes
Electrical installations are governed by strict local and national codes designed to promote safety and functionality. When installing a circuit breaker, compliance with these regulations is necessary, as they may vary depending on your location.
In the United States, the National Electrical Code (NEC) sets the minimum standards for electrical safety. For example, the NEC outlines where GFCI and AFCI breakers are required, the types of wire permitted for certain applications, and the maximum load for different circuit types. Installing a breaker without adhering to NEC guidelines can create unsafe conditions, result in failed inspections, and lead to potentially costly fines.
Before starting your installation, consult the NEC or a licensed electrician to confirm that your work meets current safety standards. Pay special attention to any updates, as the NEC is revised every three years to include the latest safety recommendations and technologies.
In many areas, electrical installations require a permit and must be inspected by a certified inspector upon completion. The process verifies that the installation was performed correctly and complies with safety codes. Failing to obtain a permit or pass an inspection can result in fines or the need to redo the work.
If you are undertaking a DIY installation, contact your local building authority to find out if a permit is required for your project. It’s also advisable to have an inspection conducted, even if it’s not mandatory, to validate the safety of your installation.
Common Mistakes to Avoid During Circuit Breaker Installation
Installing a circuit breaker demands precision and attention to detail. Several common mistakes can arise during the installation process, potentially resulting in electrical hazards or faulty operation. One frequent error involves selecting the wrong type of breaker for the panel. Choosing a breaker that is compatible with your panel and wiring system is vital for proper functionality.
Another common mistake involves failing to properly secure the wires to the breaker terminals. Loose or improperly connected wires can lead to malfunction or create a fire hazard. It’s advisable to double-check your connections before turning the power back on.
Additionally, some DIY installers may forget to turn off the main power before working on the electrical panel. The oversight poses a serious danger and can result in electrical shock. Prioritizing safety by turning off the power and verifying with a voltage tester is essential.
