Circuit breakers are essential components in modern electrical systems, playing a critical role in protecting circuits from overloads and short circuits. Without these devices, electrical systems would be vulnerable to dangerous surges that could lead to fires, equipment damage, or even fatal accidents. While all circuit breakers perform the basic function of interrupting the flow of electricity when a fault is detected, various types of circuit breakers are designed to handle different situations.
Circuit breakers work by detecting an issue in the flow of electricity, such as an excessive current or a short circuit, and automatically breaking the circuit to prevent further damage. There are many types of circuit breakers, each tailored for different environments, electrical loads, and specific needs. In this post, we will explore the common types of circuit breakers, delving into how they work, where they are used, and why they are vital to electrical safety.
Standard or Miniature Circuit Breakers (MCB)
One of the most widely used types of circuit breakers is the miniature circuit breaker (MCB). These are commonly found in residential and commercial electrical panels. MCBs are designed to protect electrical circuits from overloading and short-circuiting, which can cause overheating and fires. They typically operate within a range of 100 amps or less, making them ideal for low-to-moderate electrical loads in homes and small businesses.
The mechanism inside an MCB is relatively simple. When excessive current flows through the circuit, the MCB senses the anomaly and interrupts the circuit. MCBs are highly sensitive and designed for repeated use, meaning they can be reset after tripping.

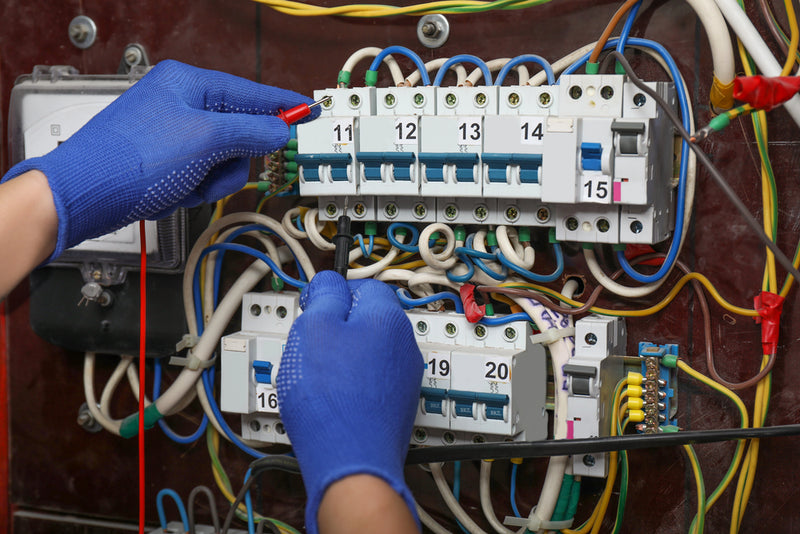

In homes, MCBs protect individual circuits like lighting, outlets, and appliances so that a fault in one area doesn’t affect the entire electrical system. Their straightforward design and ease of use make them a staple in residential settings.
Molded Case Circuit Breakers (MCCB)
Molded case circuit breakers (MCCBs) are more robust than MCBs, capable of handling higher current loads, typically between 100 and 1,000 amps. MCCBs are found in larger commercial and industrial environments where heavier equipment and more complex systems are involved. Like MCBs, MCCBs are designed to protect circuits from overcurrent and short circuits, but they also offer adjustable trip settings, which allow them to be fine-tuned for specific applications.
An MCCB has a similar working principle to the MCB, using both thermal and magnetic tripping mechanisms to detect faults. However, MCCBs are larger, have a more durable casing, and deliver more options for customization. They are often used to protect large motors, industrial machinery, and complex electrical systems in manufacturing plants, data centers, and other high-power environments.
Ground Fault Circuit Interrupters (GFCI)
Ground fault circuit interrupters (GFCI), also known as residual current devices (RCD), are specialized types of circuit breakers. They are designed to protect people from electrical shock rather than just safeguarding electrical circuits. GFCIs are commonly used in areas where there is a high risk of electrical shock. This includes bathrooms, kitchens, outdoor outlets, and swimming pools. These are designed to detect ground faults, which occur when electrical current unintentionally flows through a person or water instead of staying in the circuit.
GFCIs monitor the amount of current flowing to and from an appliance. If the GFCI detects a difference in the current, even as small as a few milliamps, it instantly shuts off the power. This quick action helps prevent electrical shock and potential fatalities. GFCIs are mandatory in many building codes. They are especially required in areas where water and electricity are in close proximity. This makes them critical for guaranteeing personal safety in residential and commercial environments.
Arc Fault Circuit Interrupters (AFCI)
Arc fault circuit interrupters (AFCI) are designed to protect against arc faults, a specific type of electrical fault caused by damaged, frayed, or corroded wires. Arc faults can generate significant heat, which may lead to fires if not addressed quickly. AFCIs are commonly installed in residential buildings to protect against electrical fires, particularly in bedrooms and living spaces where cords, wires, and outlets may be prone to damage over time.
AFCIs work by detecting the unique electrical signature of an arc fault and automatically shutting off the power to prevent overheating and fire. These breakers deliver enhanced protection compared to standard circuit breakers, which may not be sensitive enough to detect low-level arc faults. As a result, AFCIs are becoming a standard requirement in many building codes, bringing an additional layer of fire prevention to modern homes and commercial properties.
High-Voltage Circuit Breakers
High-voltage circuit breakers are used in power transmission and distribution systems where large amounts of electricity need to be managed. These circuit breakers are capable of handling voltages that exceed 72,000 volts (72 kV) and are commonly found in substations and power grids. They are key for making sure of the safety and reliability of large-scale electrical infrastructure.
Unlike low- or medium-voltage circuit breakers, high-voltage breakers require specialized insulation and cooling systems to handle the intense energy levels they manage. They often use compressed air, oil, or sulfur hexafluoride (SF6) gas to extinguish the arc that forms when the breaker trips. High-voltage circuit breakers are vital for maintaining the stability of power grids and guaranteeing that electricity can be safely transmitted over long distances.
Low-Voltage Circuit Breakers
Low-voltage circuit breakers are designed for systems that operate below 1,000 volts. These breakers are widely used in industrial, commercial, and residential settings to protect electrical equipment and wiring from overcurrent and short circuits. Low-voltage breakers come in various forms, including MCBs and MCCBs, but they are generally used in smaller, more localized systems where the electrical load is not as heavy as in high-voltage applications.
These breakers rely on a combination of thermal and magnetic tripping mechanisms to detect faults and interrupt the circuit. They are often used to protect lighting systems, heating and air conditioning units, and smaller appliances in both homes and businesses. While they operate on a smaller scale compared to high-voltage circuit breakers, they are no less important in maintaining electrical safety.
Oil Circuit Breakers
Oil circuit breakers are one of the older types of circuit breakers. They are primarily used in high-voltage applications. In these breakers, oil is used as an insulating medium. The oil also helps extinguish the arc when the breaker trips. When the circuit is interrupted, the electrical arc generated is absorbed by the oil.
Oil circuit breakers have largely been replaced by more modern technologies, such as SF6 gas circuit breakers. However, they are still used in some older power transmission systems. They are known for their durability and ability to handle high levels of electrical stress. Despite this, oil circuit breakers require more maintenance and monitoring. This is due to the need for oil replacement and leakage prevention.
Air Circuit Breakers (ACB)
Air circuit breakers (ACBs) are another common type of circuit breaker used in both low- and high-voltage applications. Instead of using oil or gas as an insulating medium, ACBs rely on air to extinguish the arc that forms when the breaker trips. These breakers are often used in industrial and commercial settings where high-current loads need to be interrupted safely.
ACBs are known for their reliability and ease of maintenance, as they do not require the same level of monitoring as oil or gas circuit breakers. They are frequently used to protect large motors, generators, and transformers, as well as to manage the distribution of electrical power in industrial plants. Their ability to handle large currents and their durability makes them a popular choice for many heavy-duty applications.
SF6 Circuit Breakers
Sulfur hexafluoride (SF6) circuit breakers are used in high-voltage power transmission systems. SF6 gas is highly effective at extinguishing electrical arcs, making it a preferred choice for circuit breakers in high-voltage environments. These breakers are commonly used in power grids and electrical substations, where they bring reliable protection against overcurrent, short circuits, and other electrical faults.
SF6 circuit breakers are known for their high efficiency, low maintenance, and ability to handle large amounts of electrical energy. The gas itself is an excellent insulator, allowing the breaker to manage high voltages without the need for bulky equipment. However, SF6 is a greenhouse gas, so there is ongoing research into finding more environmentally friendly alternatives.
Vacuum Circuit Breakers (VCB)
Vacuum circuit breakers (VCBs) are another type of high-voltage breaker that uses a vacuum to extinguish the arc when the breaker trips. When a fault is detected, the circuit is interrupted, and the vacuum quickly absorbs the electrical arc, preventing it from causing further damage. VCBs are commonly used in medium- to high-voltage systems, such as those found in power plants and industrial facilities.
Vacuum breakers are known for their durability and low maintenance requirements, as they do not rely on oil or gas for arc extinguishment. They are also highly efficient, capable of handling frequent interruptions without significant wear and tear. This makes them an excellent choice for heavy-duty applications that require reliable, long-term protection.
Hybrid Circuit Breakers
Hybrid circuit breakers combine the features of mechanical and solid-state circuit breakers. The design offers an advanced solution for both low- and high-voltage applications. These circuit breakers use mechanical contacts to interrupt high currents. They also incorporate solid-state components, such as semiconductors, to handle lower-level currents and faster switching times. The result is a circuit breaker that gives the benefits of both technologies. Users gain the durability and robustness of mechanical systems along with the precision and speed of solid-state devices.
Hybrid circuit breakers are particularly useful in modern power systems where speed and reliability are important. For example, they are often found in smart grids, renewable energy installations, and other advanced electrical systems. These systems require quick response times and minimal downtime. The combination of technologies allows hybrid breakers to reduce arc duration.
Thermal-Magnetic Circuit Breakers
Thermal-magnetic circuit breakers are widely used for protecting electrical systems from both overloads and short circuits. They use two mechanisms to detect faults: a thermal element that responds to slow, sustained overloads and a magnetic element that reacts to sudden short circuits. This dual protection makes them suitable for a range of residential, commercial, and industrial applications.
The thermal mechanism works by using a bimetallic strip that bends when it heats up due to an overload. Once it reaches a certain threshold, the strip trips the circuit, cutting off the power. On the other hand, the magnetic mechanism relies on a solenoid that activates when a sudden surge of current occurs, tripping the circuit instantly to prevent damage. The combination of mechanisms allows thermal-magnetic breakers to offer comprehensive protection against various electrical faults.
As a result, they rank among the most versatile options in the market. These breakers are commonly found in building electrical systems, industrial machinery, and even data centers. In these settings, precise control of electrical flow holds significant importance.
Hydraulic-Magnetic Circuit Breakers
Hydraulic-magnetic circuit breakers represent another specialized type of breaker often used in environments requiring precise timing and temperature independence. Unlike thermal-magnetic breakers, which rely on heat to trip the circuit, hydraulic-magnetic breakers utilize a combination of a magnetic coil and a fluid-filled chamber to control the tripping process. This design allows the breaker to operate independently of ambient temperature, making it an ideal choice for environments with fluctuating or extreme temperatures.
These circuit breakers frequently find application in marine environments, telecommunications, and data centers. In these settings, equipment sensitivity and environmental conditions necessitate more precise control. Hydraulic-magnetic breakers also hold significant value for their ability to withstand repeated short circuits without significant wear.
Smart Circuit Breakers
As electrical systems become more integrated with digital technology, smart circuit breakers are emerging as a key component of modern electrical infrastructure. These breakers are equipped with advanced sensors, communication capabilities, and control mechanisms that allow users to monitor and manage electrical circuits remotely. Smart breakers can bring real-time data on current flow, load levels, and fault conditions.
Smart circuit breakers are particularly useful in smart homes, industrial automation, and renewable energy systems. They can be programmed to respond to specific conditions, such as reducing energy consumption during peak hours or shutting down circuits when equipment is idle. Additionally, smart breakers can be integrated with other smart devices and systems, allowing for seamless coordination of electrical functions across a wide range of applications.
Trust Essential Electric Supply’s Reliable Circuit Breakers
Understanding the different types of circuit breakers and their uses is necessary for anyone working with electrical systems, from residential electricians to industrial engineers. Each type of circuit breaker is designed to handle specific scenarios so that electrical circuits are protected from damage and that people remain safe from electrical hazards.
